Fire Resistant Satin Weave E glass Fiberglass Fabric With 39" Width , 0.4mm 430g 3732

Brand Name : Changshu

Model Number : 3732

Certification : ISO9001:2008

Place of Origin : China

MOQ : 500 Meters

Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION

Supply Ability : 10000 Square Meters per day

Delivery Time : 14 Days after the Payment

Packaging Details : Carton Box，Woven Bag

Price : Negotiable

Product Name : Twill Weave E glass Fiberglass Fabric With 39" Width , 0.4mm 430g 3732

Thickness : 0.4mm

Weight : 430gsm

Standing temperature : 550 Degree

Weave type : Twill Woven

Material : 100% Fiberglass Fabric

Yarn : E-glass G37 1/0 0.7Z

Feature : Fire Retardant

Application : Heat Insulation on Joint Point

Contact Now

Fire Resistant Satin Weave E glass Fiberglass Fabric With 39" Width , 0.4mm 430g 3732

1. Descriptions:

3732 fiberglass fabric is a kind of industrial fabric woven in satin method with E-glass fiberglass roving. The glass fabric is weighed at 430gsm. Thickness is 0.4mm. Satin weave is also called cross twill or break twill weave, different from plain weave, it is a flexible and loose structural weave with higher density.

This e-glass fiber glass fabric can be impregnated with resin easily; Additionally this fabric has good performance in anti-chemical, fireproofing, thermal and durability. Therefore, it is widely used in glass fiber reinforced plastics industry and in other fields.

3732 fiberglass cloth can resist 550°C(about 1022°F) continuously. It is often used in applications including thermal insulation covering, heat/welding protection products, removable exhaust blanket(usually with silicone coating), fireproof bags, thermal insulation jackets, mattress and pad, fabric duct connector.

2. Specification

Items 3732 Fiberglass Fabric
Weave Cross Twill
Yarn Warp Weft G37 1/0 0.7Z

G37 1/0 0.7Z
Thickness

0.43mm
Weight

430g/m²
Yarn Count Warp Weft

19.6/cm

11.5/cm
L.O.I% 0.5
Width 100cm, 127cm, 155cm
Working Temperature 550°C

3. Factors of Scoring In Quality Control

  • Fabric Quality
  1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
  2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
  3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
  4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.
  • ​High Quality :
  1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,
  • Low Price:
  1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.

4. Product Application

Fire blanket

Jacketed vessel thermal insulation covers

Exchanger blanket

Welding protective product

Fabric expansion joints

Fire doors & fire curtains

Fireproof product: fireproof bag

5. Product Features
Electrical Properties.
Thermal Conductivity, Dimensional Stability.Chemical Resistance Fire Resistance,Moisture Resistance.
The Materials all are from natural, the abundant raw materials are renewable.
High strength, high modulus, variable weight, floating large.
Excellent durability, consistent with the life cycle of electronic products.
Excellent electrical performance, cost-effective can not be replaced.
All can be compounded, provide a basis to the use of other areas.

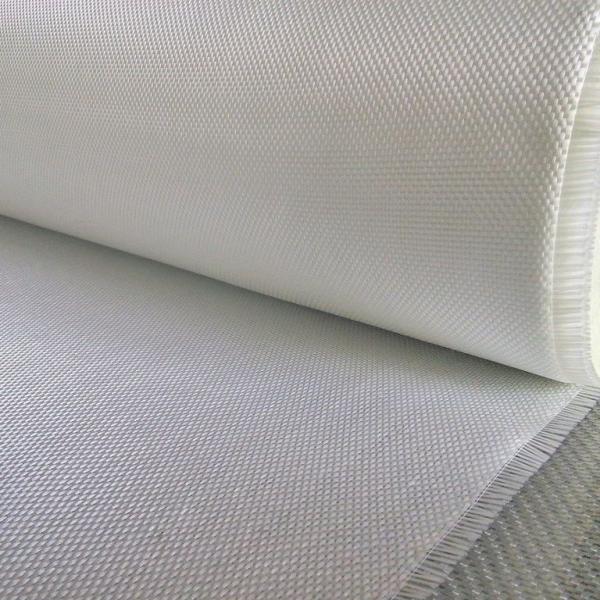

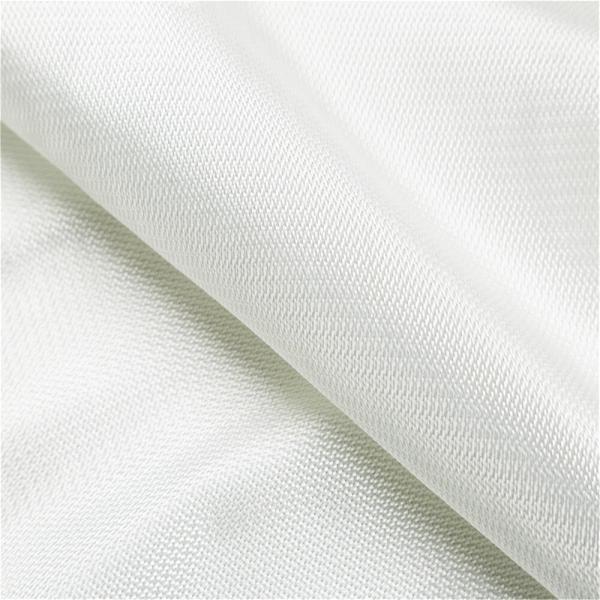

6. More Pictures for Product and Package
Fire Resistant Satin Weave E glass Fiberglass Fabric With 39" Width , 0.4mm 430g 3732
Fire Resistant Satin Weave E glass Fiberglass Fabric With 39" Width , 0.4mm 430g 3732
7. Related Products (If you want to other different thickness for fiberglass fabric)
Fiberglass Cloth Roving
Item Name Thickness (mm) Weight (g/m2) Weave Width Length (cm) Remarks
E7628 0.18 180 Plain 127 All Size Can be Customized
C7628 0.2 200 Plain 100/130/150
CW280 0.28 280 Plain 102
E3732 0.38 430 1/3 Satin 100/120/150/180/200
C3732 0.38 430 1/3 Twill 100/120/150/180/200
2523 0.38 380 Plain 100/120/150/180/200
E666 0.6 630 8H Satin 100/120/150/180/200
C666 0.6 630 8H Satin 100/120/150/180/200
E3784 0.8 850 8H Satin 100/120/150/180/200
C3784 0.8 850 8H Satin 100/120/150/180/200
E3786 1.2 850 8H Satin 100/120/150/180/200
C3786a 1.2 1000 12H Satin 100/120/150/180/200
C3786b 1.2 1200 12H Satin 100/120/150/180/200
C3786c 1.2 1300 12H Satin 100/120/150/180/200
E3788 1.6 1650 12H Satin 100/120/150/180/200
C3788 1.6 1650 12H Satin 100/120/150/180/200
